100mm Width Pipe Anti Corrosion Adhesive Tape For Water Pipe

100mm Width Pipe Anti Corrosion Adhesive Tape For Water Pipe

    Unit Price: 2~10 USD
    Payment Type: T/T,L/C,Western Union
    Terms of Trade: FOB
    Min. Order: 200
    Delivery Time: 7 Days
    Packaging: Packing in carton
    Productivity: 300 MTS/month
    Brand: XUNDA
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 50000MTS
    Certificate: ISO9001,SGS

Basic Info

Model No.: T100

Product Description


Anti Corrosion Tape for Gas,Oil Pipeline


1) Backing layer : PE


2) Adhesive layer: Butyl rubber


Anti Corrosion Tape for Gas,Oil water Pipeline


1) Standard: ASTM D 1000 DIN 30672 and EN 12068

2) Material: Polyethylene(PE)
3) Color: Black,White,Yellow,Gray

4) Certificate report: SGS , DVGW

5) Application: corrosion resistance, surface protection

6) Temperature: -10degree to 60 degree

7) Life time: 30 years

8) Tape consist of two layers, adhesive and film

10) Manager system: ISO 9001,ISO 14001,OHSMS 18001
11) Long term corrosion protection and mechanical resistance, excellent adhesion to pipe and itself wide applied range and service.

China xunda tape



Type

T138-15

T145-18

T150-20

T165-25

T175-30

Total thickness

0.390mm

0.460mm

0.510mm

0.650mm

0.770mm

Polyethylene Film

0.230mm

0.250mm

0.300mm

0.340mm

0.420mm

Butyl Rubber Adhesive

0.160mm

0.210mm

0.210mm

0.310mm

0.350mm

Elongation at break

410%

420%

560%

567%

570%

Tensile Strength

54.0N/cm

55.0N/cm

61.5 N/cm

64.5N/cm

68.0N/cm

Yield Strength

36.0N/cm

36.6N/cm

40.5 N/cm

43.0N/cm

45.3N/cm

Peel Adhesion to Primed Pipe

23.0N/cm

26.0N/cm

26 .0N/cm

34.0N/cm

35.0N/cm

Adhesion to backing at

5.1 N/cm

5.2N/cm

5.2N/cm

5.4N/cm

5.4 N /cm

Dielectric Strength

23.0 KV

25.0 KV

25.5 KV

27.0 KV

29.0 KV

Cathodic Disbondment

6.4mm

Volume Resistivity

2.2X1015ohm.cm

Water Vapor Transmission rate

0.15g/m2/24h

Water Absorption Rate

0.06%

Application Temperature

-34 ºC to +85 ºC

Max Serve Temperature

+85 ºC

Available RollSize(width* length)

50 to 750mm X 15 to 240 m

Color

Black

Test Data Sheet:

Physical Properties

Test Method

Typical Value

English

Metric

Total thickness

ASTM D 1000

25 mils

0.635mm

Backing thickness

ASTM D 1000

13 mils

0.330mm

Adhesive thickness

ASTM D 1000

12 mils

0.305mm

Width

-

9"

228mm

Length

-

600'

183m

Backing color

-

Black,

Black

Tensile strength

ASTM D 1000

36.3 lbs/in

64.5 N/cm

Elongation

ASTM D 1000

562%

562%

Peel Adhesion to primed steel pipe

ASTM D 1000

311oz/in

34 N/cm

Cathodic Disbondment

ASTM G 8

0.252 in radius

6.4mm

Dielectric Strength

ASTM D 149

27.0 KV

27.0 KV

Volume Resistivity

ASTM D 257

2.4×1015 ohm.cm

2.4×1015 ohm.cm

Water Absorptivity

ASTM D 570

0.06%

0.06%

WaterVaporTransmissioinRate24 h

ASTM F 1249

0. 083 g/100sq in/24hr

0.13 g/ m2.24h

Application Temperature

-

-29ºF to 185 ºF

-34ºC to +85 ºC

Max Service Temperature

-

185ºF

+85 ºC


china cheap adhesive tape




287262003_647



Application

1 Rust Removal

Steel Surface needs treating. Its quality shall reach Sa2 or St3 grade as prescribed in GB8923-88 Pre-paint Steel Surface Rust Grade and Rust-removal Grade, and it shall be dust-free.

2 Priming

Primer shall be stirred well before painting. An even film of primer is painted on the steel surface that is rust-removed completely and dust-free. After the primer dries up (one may feel no sticky). The steel pipe can be wrapping with tape (it usually takes 3 to 5 minutes). The primer dosage usually amounts to 80 to 100g / m².

3 Inner Tape (Anti corrosion Tape) & Outer Tape (Protection Tape) Wrapping

The steel pipe that is painted with primer is wrapping with tape by means of suitable devices or tools as per joint needs, and wraps the inner tape and then wraps the outer tape. Tape tensibility can be 10 to 20 N / cm. The overlapped length between beginning and end of an Adhesive Tape shall be no less than 1/4 circumference of the steel pipe and the total length of adhesive tape shall be no less than 100mm. each film shall be paralleled, and must not be twisted and rumpled.

wrapping tape application


HTB1ZGleHpXXXXbIapXXq6xXFXXXH

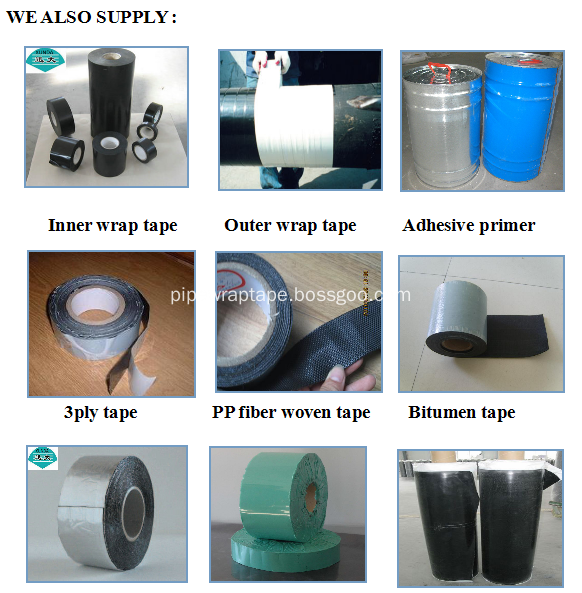

WE ALSO SELL :

* 3 ply tape

* PP fiber woven tape

* PE bitumen tape

* Alu Flashing Tape

* Viscoelastic body adhesive tape / paste

* Heat shrinkable sleeves

* Butyl rubber adhesive primer

20150330101732






  • 1
  • 2
  • 3
  • 4
  • 5

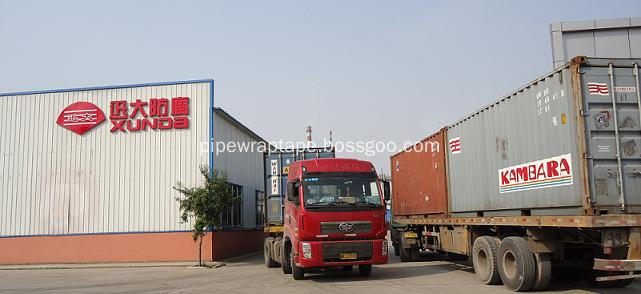

Jining Xunda Pipe Coating Materials Co.,Ltd , the manufacturer of the manufacturer corrosion prevention coating materials construction waterproof and sealing coating materials.

A joint-stock enterprise, possessing a gross investment of RMB 42 million, registered capital of RMB 20 million.

Our services : underground, underwater and aboveground oil , gas , water and petrochemical pipelines transport system corrosion and mechanical protection.Construction building roof , bathroom ,kitchen waterproof.bridge concrete waterproof and sealing.Pipeline insulation and UV resistance.shipbuilding and oil,water tanks waterproof and corrosion prevention.

Our advantage: we have the advanced production technology, Scientific management method, First-class R & D team, Perfect after sales service system . We have passed the SGS , DVGW, AWWA test and ISO9001, ISO14001, ISO18001,Bureau Veritas certification. We are the Audited Suppliers of SINOPEC, CNOOC,CNPC. We are also one of the largest pipeline anti-corrosion tape manufacturer in China since 2014.

Our major market including more than 70 countries, widely distributed in South Asia, Southeast Asia, Central Asia, West Asia, the Middle East, Africa, Europe, Eastern Europe, South America, Australia.

Philosophy:

Your needs , our pursuit .

Mission and Vision :

Xunda will continue to develop corrosion prevention, waterproof and sealing solutions for the protection of client's valuable infrastructural assets around the world, ensuring our clients derive maximum benefit from our solutions. fulfilling all market requirements for a performance guarantee against corrosion , whilst ensuring respect for the environment and applicator.

Pursuing world leadership for innovative, cost-effective, and environmentally corrosion prevention , waterproof and sealing solution.
